for medium throughput screening using Echo Qualified sample tubes
| Description | Specifications |
|---|---|
| Drop volume | 2.5 nL |
| Volume transfer range | 2.5 nL – 5 µL (dependent on fluid type, assay, and source plate used) |
| Reagents supported | DMSO, PCR and qPCR reagents, synthetic biology reagents, NGS reagents, primers and probes, cell culture media, proteins, nucleic acids, up to 50% glycerol, serum, plasma, antibodies, enzymes, and protein crystallography reagents |
| Transfer accuracy | <10% deviation from target volume |
| Transfer precision | <8% CV (except protein crystallography fluid class) |
| Source labware compatibility | All Echo Qualified 384- and 1536-well Microplates and Echo Qualified acoustic sample tubes |
| Destination labware compatibility | All Echo Qualified Microplates and most ANSI-compliant/SBS-standard microplates in 96-, 384-, 1536-, and 3456-well formats 8 to 16 mm well height |
| Barcode reader options | Short-side and/or long-side |
| Dimensions | 53.9 cm width x 68.3 cm depth x 92.5 cm height (21.2 x 26.9 x 36.4 inches) |
| Weight | 130 kg (286 lbs) |
| Working envelope | Additional 25.4 cm (10 inches) on top, 2.5 cm (1 inch) on sides, 7.6 cm (3 inches) at front, 30.5 cm (12 inches) at back |
| Electrical | AC 120V, 50/60 Hz, 10 A or AC 230V, 50/60Hz, 5 A |
| Operating temperature | 21°C ± 5°C (70°F ± 9°F) |
| Vacuum | House supply minimum 200 Torr (266 mbar, 22 inches Hg Vac) OR Standalone vacuum with surge tank, minimum pump speed 2.0 m3/hr, minimum pressure 100 Torr (133 mbar, 26 inches Hg Vac) |
| Fluid class calibration | No calibration needed |
Due to their outstanding throughput, high transfer accuracy and precision down to nanoliter volumes and any-well to any-well transfer capabilities, Echo Liquid Handlers have long been integral to state-of-art sample management and high throughput screening solutions.

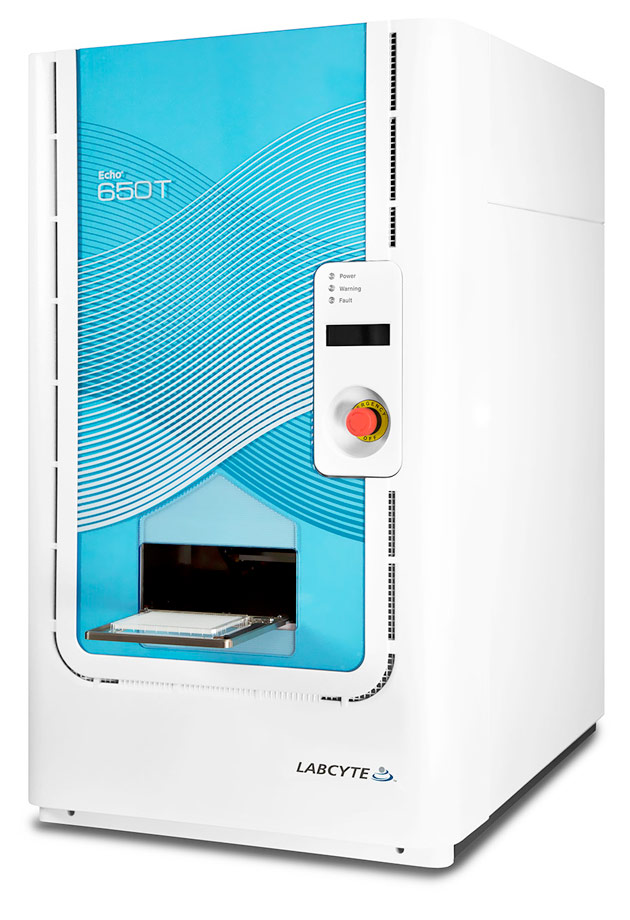

Offering these same benefits, the Echo 650T Liquid Handler now supports sample transfer directly from Echo Qualified sample tubes enabling a fully non-contact dispensing workflow from sample storage all the way to assay ready plates. Capable of transferring as little as 2.5 nL from 384-well and 1536-well microplates and now acoustic tubes arrayed in a 96-tube format, the Echo 650T Liquid Handler is ready to meet the needs of a wide variety of molecular and cellular assays.
The FluidX AcoustiX Sample Tube (FAST) was developed in collaboration with and is sold by Brooks Life Sciences for ultra-high-density sample storage. The acoustic tube offers the following benefits:
To meet the broad spectrum of sample throughput needs, the Echo 650T Liquid Handler seamlessly integrates with the highly configurable Access Dual or Single Robot System accommodating a wide variety of devices and enabling a fully automated workflow. Whether your workflow requires plate reformatting, hit picking, daughter plate creation or adding samples and reagents for screening assays or genomics workflows, Labcyte offers a fully integrated Echo 650T Liquid Handler solution to meet your needs.
Learn more about the Access Dual Robot System
VIDEO
The Echo Liquid Handler revolutionizes liquid handling with acoustic energy. Sound waves eject precisely sized droplets from a source onto a microplate, slide or other surface suspended above the source.
With a combination of high transfer speeds and diverse fluid transfer capabilities, the Echo 650T Liquid Handler supports a wide range of applications in drug discovery and basic research.
