Complete Control of Liquid Transfers
Transfer samples and reagents to user-defined patterns
Echo Array Maker software enables users to graphically design custom patterns and formats for transfer. This can be used to transfer samples and reagents onto microarrays, chips, or to multiple locations of a microplate well.
Create custom spotting patterns to transfer fluids to microarrays or chips

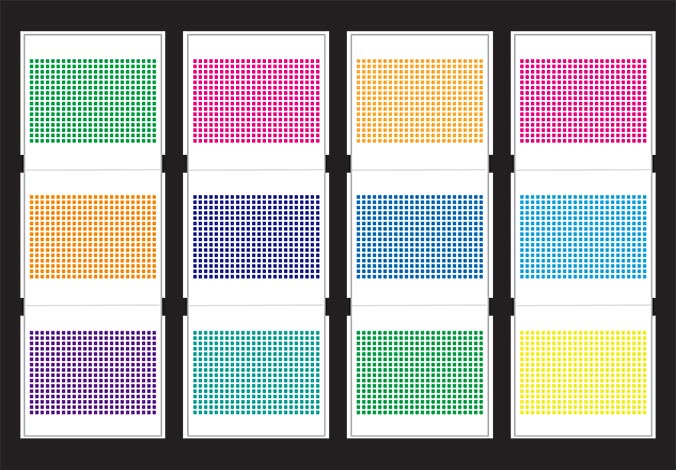

Destination Arrays
Four microarray slides, each spotted with replicate transfers from 384-well source plates

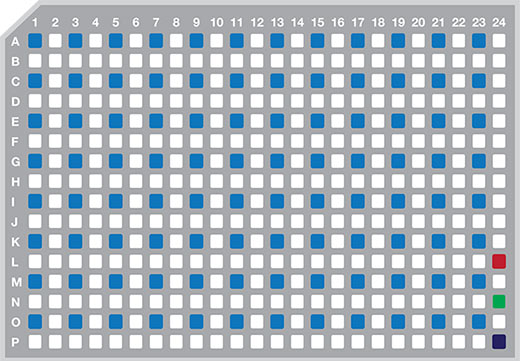

Source Plate
384-well source plate containing samples and reagents

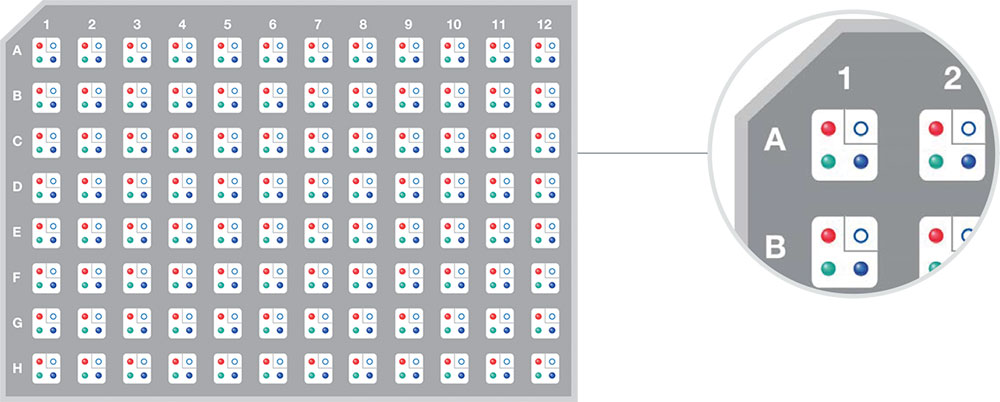

Create custom transfer patterns to prepare plates for high throughput crystallography screening
Destination Plate
Protein crystallography assay plate with varying concentrations of solvents and reagents in specific locations of each well
Easily setup designs for your assay plates
- Create custom destination formats for protein crystallography, MALDI, and more
- Share patterns across Echo systems
- Transfer to multiple arrays, multiple patterns within arrays, and multiple spots within patterns
- Import pick lists to set which samples are transferred to which pattern and spot
Echo Array Maker Specifications
| Description | Specifications |
|---|---|
| Operating system | Microsoft Windows 7 (32-bit or 64-bit), or Microsoft Windows 10 64-bit (Windows 7 compatibility mode); Windows.Net Framework 4.62 or greater |
| CPU | Intel® Core™ i5 or later |
| Memory | 4 GB or greater |
| Network connection | 10/100/1000 BaseT (2 network connections are required) |
| Network protocol | TCP/IP |
| Hard drive | 4 GB free space required |
| Video resolution | 1920 x 1080 recommended resolution (1440 x 900 minimum resolution) |
| Echo® Client Software | 2.6 or later |
| Echo.Net Framework | 1.7 or later |
