Echo QUALIFIED RESERVOIR
Enable convenient assay assembly and efficient large reagent volume transfers
REQUEST SAMPLEEnables Sample Transfers with Minimal Dead Volume

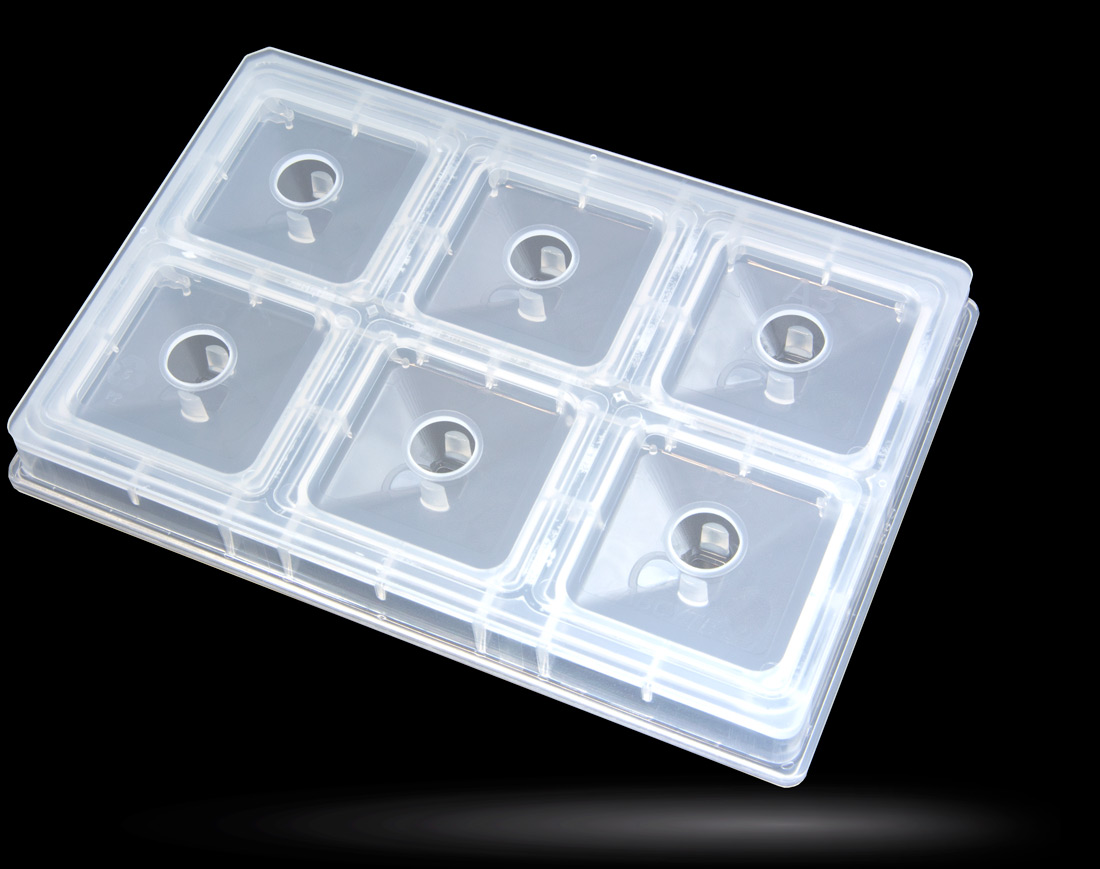

An Echo 525 Liquid Handler source plate designed to enable convenient assay assembly and efficient large reagent volume transfers. The Reservoir enables scientists performing genomic, proteomic and cell-based assays to dispense costly and precious reagents and samples with minimal dead volume.
Key Features
- Echo Qualified - lot-tested to guarantee Echo Liquid Handler performance
- 6-well design with over 15 mL capacity
- Dispense up to 2.55 mL per well
- Maximum 250 µL dead volume per well (<9% of maximum working volume)
- Recoverable dead volume
- DNase/RNase free
- Robotics and automation compatible
- Heat seal and MicroClime Lid compatible
- Meets ANSI/SLAS 1-2004, 2-2004, and 3-2004 standards
Echo Qualified Microplates are available with custom barcode or sterile options.
| Type | Specifications | Catalog #Cat. # | Units |
|---|---|---|---|
| Echo Qualified Reservoir | F6-well (2x3) | ER-0050 | 50 plates/case |
| Working volume (per well): 250 - 2,800 µL | |||
| Dead volume (Echo source plate): 250 µL |
