Echo QUALIFIED MICROPLATES
The best acoustic liquid transfer comes from the best microplates
REQUEST SAMPLEPrecise Manufacturing for Superior Results

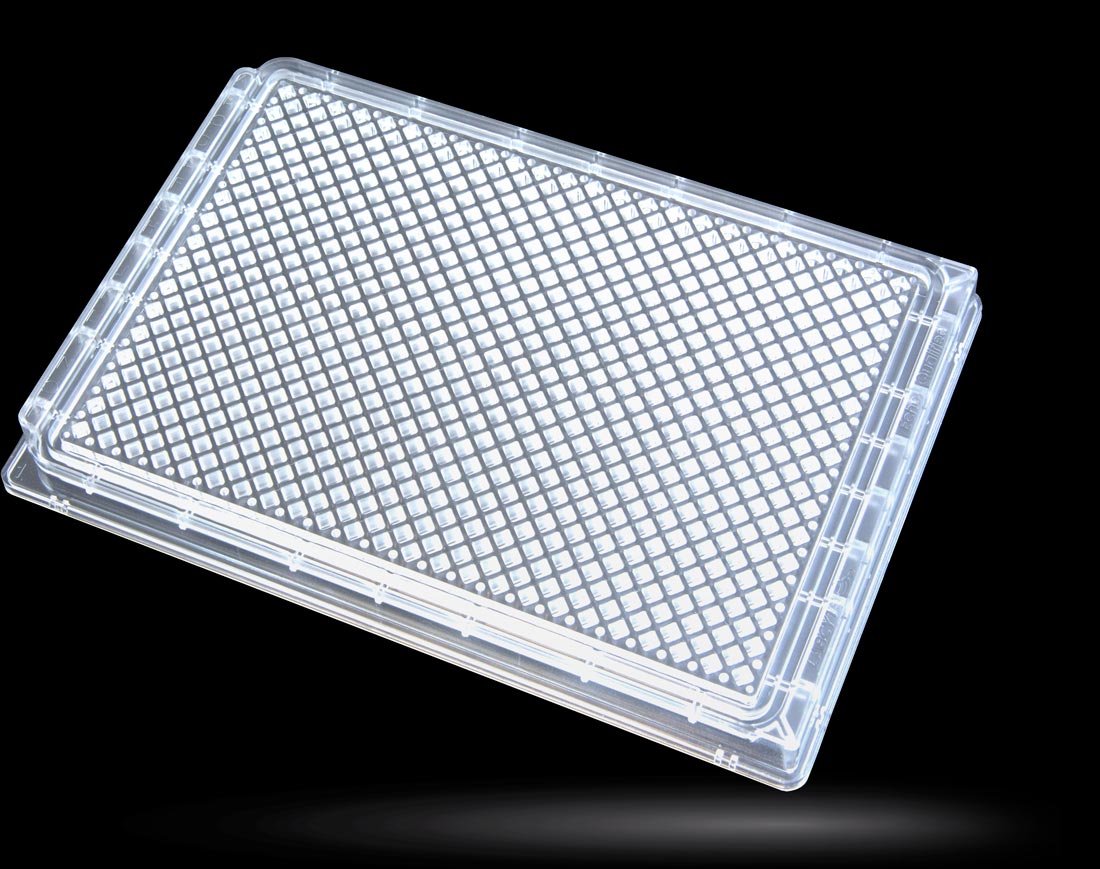

For best results, Echo Liquid Handlers are designed to use Echo Qualified 384-well and 1536-well Source Microplates for precise and accurate liquid transfer.
Echo Qualified Microplates deliver the best possible results in compound storage and miniaturized assays, and each plate is insured to meet the specifications required for consistent acoustic transfers. Labcyte performs functional qualification tests on each microplate lot with an Echo Liquid Handler to verify that our microplates deliver superior precision and accuracy and DMSO hydration measurements.
Key Features
- Designed for use with Echo liquid handling systems
- Made of cyclic olefin copolymer or polypropylene
- Enables high precision transfers for broad volume ranges
- High accuracy and linearity of DMSO hydration measurements
- Lot-tested to meet Echo specifications
- Low intra- and inter-plate CVs
- Available with tissue-culture surface treatment
Echo Qualified Microplates are available with low dead volume, custom barcode, or sterile options. Contact your Labcyte sales representative for more detail.
Product Specifications
| Type | Specifications | Catalog #Cat. # | Units | 525 | 55X | |
|---|---|---|---|---|---|---|
| Echo Qualified 384-Well Polypropylene Microplate 2.0** (384PP 2.0)
Standard Sterile Tissue Culture 55X |
Flat bottom, TRANSLUCENT DMSO working range: 15-65 μL Buffer working range: 15-65 μL* (includes buffers with and without protein or detergents, and containing up to 50% glycerol) Protein crystallography reagents: 20–50μL* * Expanded range in newer Echo models; not all aqueous transfer capabilities are available for all instrument models. ** Software requirement - The Echo Qualified 384PP 2.0 microplate cannot be used on Echo instruments that do not have the software upgrade. The required Echo software version is 2.4.10 or 2.5.10 or later. |
Standard Sterile Tissue Culture |
PP-0200 PP-0200-BC PPS-0200 PPS-0200-BC PPT-0200 |
100/case | ||
| Echo Qualified 384-Well Polypropylene 2.0 Plus Microplate (384PP 2.0 Plus) Standard (Sterile) 525 |
Flat bottom, CLEAR Buffer working range: 20–65 μL Buffer/protein working range: 20–65 μL |
Standard (Sterile) | PPL-0200 | 100/case | ||
| Echo Qualified 384-Well Low Dead Volume Microplate(384LDV)
Standard Sterile 55X |
Flat bottom, CLEAR DMSO working range: 2.5–12 μL Buffer working range: 3–12 μL* Buffer/protein working range: 6–14 μL* * Not all aqueous transfer capabilities are available for all instrument models |
Standard Sterile |
LP-0200 LP-0200-BC LPS-0200 |
50/case | ||
| Echo Qualified 384-Well Low Dead Volume Microplate (384LDV-Black) Standard 55X | Flat bottom, BLACK DMSO working range: 2.5–12 μL Buffer working range: 3–12 μL* Buffer/protein working range: 6–14 μL* * Not all aqueous transfer capabilities are available for all instrument models |
Standard | LP-0210 LP-0210-BC |
50/case | ||
| Echo Qualified 384-Well Low Dead Volume Plus Microplate(384LDV Plus) Standard 525 | Flat bottom, CLEAR Buffer working range: 4.5 – 14 μL Buffer/protein working range: 4.5 – 14 μL |
Standard (Sterile) | LPL-0200 | 50/case | ||
| Echo Qualified 1536-Well Low Dead Volume Microplate (1536LDV) Standard 55X | Flat bottom, CLEAR DMSO working range: 1.0–5.5 μL |
Standard | LP-0400 LP-0400-BC |
50/case | ||
| Echo Qualified 1536-Well Low Dead Volume Microplate (1536LDV Black) Standard 55X | Flat bottom, BLACK DMSO working range: 1.0–5.5 μL |
Standard | LP-0410 LP-0410-BC |
50/case | ||
| Echo Qualified 1536-Well Low Dead Volume Microplate, Tissue Culture Treated (1536LDV-TC)
1536LDV-TC 1536LDV TC Collagen 55X |
Flat bottom, CLEAR DMSO Working range: 1.5–5 μL |
1536LDV-TC 1536LDV TC |
LPT-0400 | 50/case |
